Thermal Imaging

FLIR A655sc infrared camera

High resolution camera for scientists and researchers

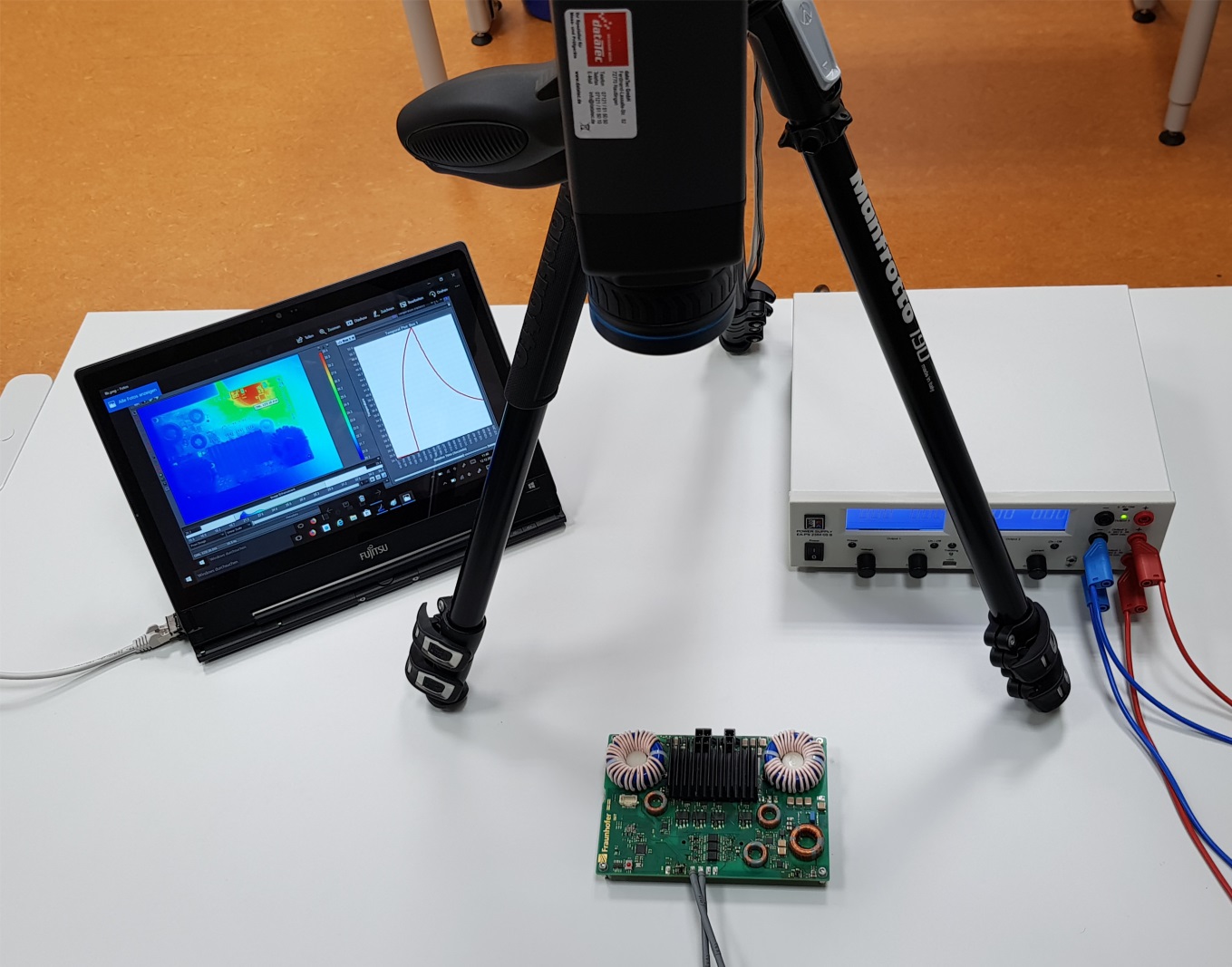

• PCB hotspot analysis
• Investigations of different cooling systems
• Monitoring the temperature of dedicated parts (initial operation, max load test)

Specifications

• Temperature range:                            -40°C to 150°C 100°C to 650°C
• Accuracy:                                            ±2°C or ±2% of reading
• Detector type:                                     Uncooled microbolometer
• Spectral range:                                    7,5 – 14,0 µm
• Resolution:                                          640 x 480 px
• NETD:                                                  <30 mK
• Frame rate (full window):                     50 Hz
• Max frame rate (@ min window):         200 Hz (640 x 120)
• Dynamic range:                                    16-bit
• Digital data streaming:                         Gigabit Ethernet (50/100/200 Hz); USB (25 Hz)
