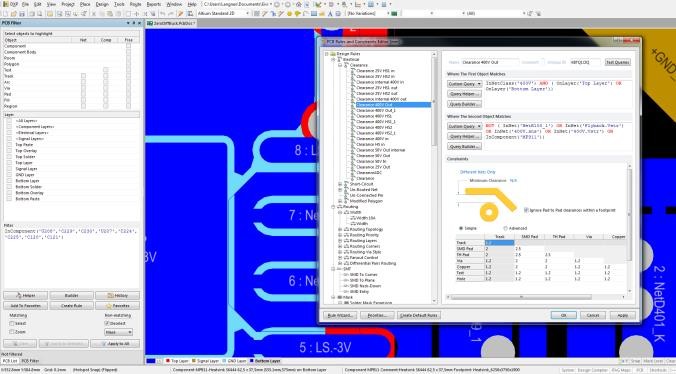

Intuitive CAD Tools enable experienced hardware engineers to create innovative PCB- schematics and -layouts. In the schematics, each signal can be declared and analyzed with regard to impedance, noise, sensitivity, current- and voltage- tolerance. The declared parameters later enable a simplified and secure layout process.
Specification
- Version control
- Integrated mixed signal simulator
- Interactive Routing
- FEM interface enables complete analysis in terms of heat, current density and voltage distribution

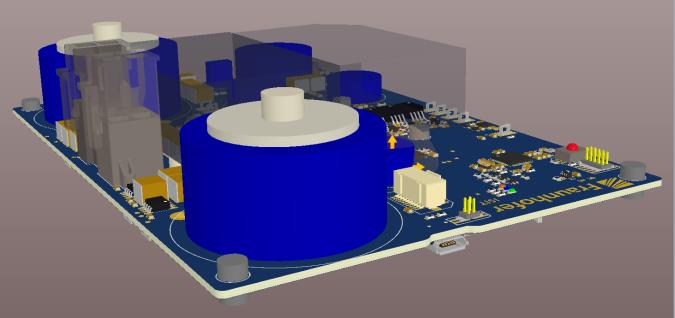

- Mechanical integration and error avoidance using 3D visualization
