Comsol Multiphysics
- Import of typical CAD data (ODB+, step, solidworks)
- Creating your own geometry
- Material data base (specific parameter)
- Physical models (AC/DC, electrostatics, heat transfer)
- Studies (stationary, time-dependent, frequency-dependent)
- Evaluation (equations, tables, 2D plots, 3D plots, animations)
Applications

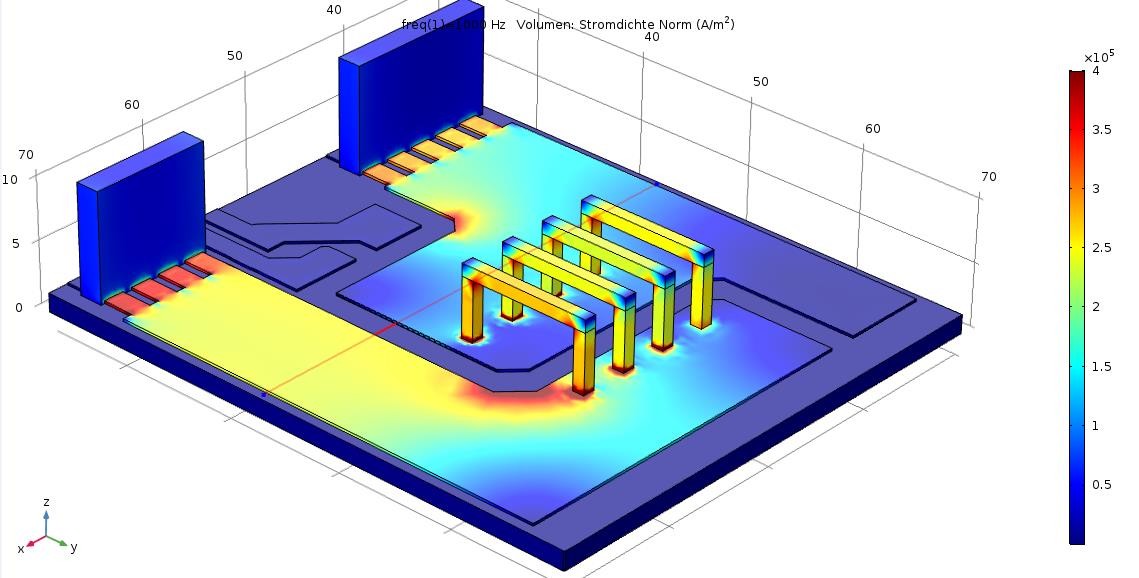

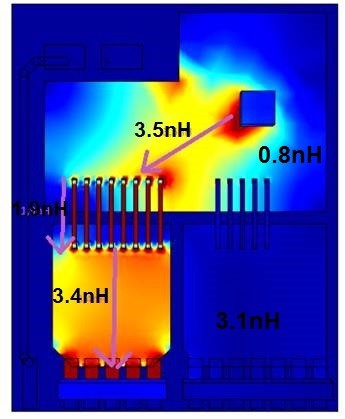

- Investigation and optimization of PCBs due to low inductive designs
- Thermal investigations of an IGBT and its layers underneath
